crn::ImageBase Class Reference

Base class for images. More...

#include <CRNImage.h>

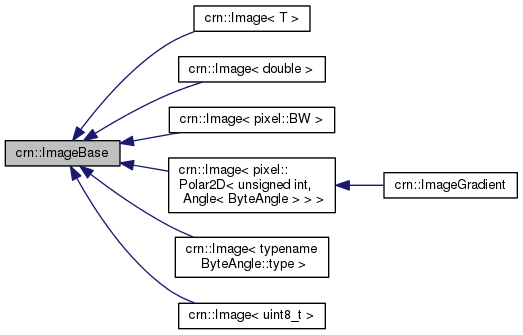

Inheritance diagram for crn::ImageBase:

Public Member Functions
virtual	~ImageBase ()
	ImageBase (size_t w, size_t h)
	ImageBase (const ImageBase &)=default
	ImageBase (ImageBase &&)=default
ImageBase &	operator= (const ImageBase &)=default
ImageBase &	operator= (ImageBase &&)=default
virtual std::unique_ptr < ImageBase >	Clone () const =0
virtual void	SavePNG (const Path &fname) const =0
	Saves as PNG file. More...
virtual void	SaveJPEG (const Path &fname, unsigned int qual) const =0
	Saves as JPEG file. More...
size_t	GetWidth () const noexcept
size_t	GetHeight () const noexcept
Rect	GetBBox () const noexcept
size_t	Size () const noexcept
virtual void	ScaleToSize (size_t w, size_t h)=0
	Scales the image. More...

Protected Attributes
size_t	width
size_t	height

Detailed Description

Base class for images.

Definition at line 46 of file CRNImage.h.

Constructor & Destructor Documentation

ImageBase::~ImageBase ( )

virtualdefault

crn::ImageBase::ImageBase ( size_t  w, size_t  h  )

inline

Definition at line 54 of file CRNImage.h.

crn::ImageBase::ImageBase ( const ImageBase &  )

default

crn::ImageBase::ImageBase ( ImageBase &&  )

default

Member Function Documentation

virtual std::unique_ptr<ImageBase> crn::ImageBase::Clone ( ) const

pure virtual

Implemented in crn::Image< T >, crn::Image< double >, crn::Image< pixel::BW >, crn::Image< typename ByteAngle::type >, crn::Image< uint8_t >, and crn::Image< pixel::Polar2D< unsigned int, Angle< ByteAngle > > >.

Rect ImageBase::GetBBox ( ) const

noexcept

Returns

the bounding box of the image

Definition at line 56 of file CRNImage.cpp.

size_t crn::ImageBase::GetHeight ( ) const

inlinenoexcept

Returns

the height of the image

Definition at line 74 of file CRNImage.h.

size_t crn::ImageBase::GetWidth ( ) const

inlinenoexcept

Returns

the width of the image

Definition at line 72 of file CRNImage.h.

ImageBase& crn::ImageBase::operator= ( const ImageBase &  )

default

ImageBase& crn::ImageBase::operator= ( ImageBase &&  )

default

virtual void crn::ImageBase::SaveJPEG ( const Path &  fname, unsigned int  qual  ) const

pure virtual

Saves as JPEG file.

Implemented in crn::Image< T >, crn::Image< double >, crn::Image< pixel::BW >, crn::Image< typename ByteAngle::type >, crn::Image< uint8_t >, and crn::Image< pixel::Polar2D< unsigned int, Angle< ByteAngle > > >.

virtual void crn::ImageBase::SavePNG ( const Path &  fname ) const

pure virtual

Saves as PNG file.

Implemented in crn::Image< T >, crn::Image< double >, crn::Image< pixel::BW >, crn::Image< typename ByteAngle::type >, crn::Image< uint8_t >, and crn::Image< pixel::Polar2D< unsigned int, Angle< ByteAngle > > >.

virtual void crn::ImageBase::ScaleToSize ( size_t  w, size_t  h  )

pure virtual

Scales the image.

Implemented in crn::Image< T >, crn::Image< double >, crn::Image< pixel::BW >, crn::Image< typename ByteAngle::type >, crn::Image< uint8_t >, and crn::Image< pixel::Polar2D< unsigned int, Angle< ByteAngle > > >.

size_t crn::ImageBase::Size ( ) const

inlinenoexcept

Returns

the number of pixels in the image

Definition at line 78 of file CRNImage.h.

Member Data Documentation

size_t crn::ImageBase::height

protected

Definition at line 92 of file CRNImage.h.

size_t crn::ImageBase::width

protected

Definition at line 92 of file CRNImage.h.

---

The documentation for this class was generated from the following files:

• /home/travis/build/Liris-Pleiad/libcrn/src/libcrn/CRNImage/CRNImage.h
• /home/travis/build/Liris-Pleiad/libcrn/src/libcrn/CRNImage/CRNImage.cpp
